Underwater Acoustic Modem Models



Download Data Sheet in PDF Format

High Resolution, 4 Pages, 2.7 Mbytes

Low Resolution, 4 Pages, 1.5 Mbytes






Click the picture to enlarge

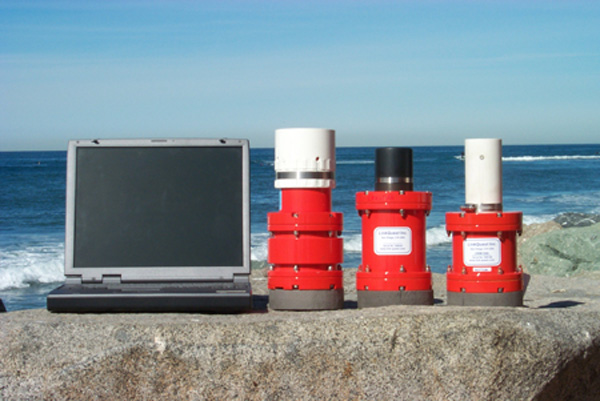

UWM1000
Shallow Water, Super Low Power

Directional or Omni-directional Transducer

Near-vertical or horizontal environments

Range: Up to 350 meters

Depth: Up to 200 meters

Data Rate: 9600 to 19200 bits/sec

Specifications




Click the picture to enlarge

UWM2000
Medium Range, Low Power

Directional or Omni-directional Transducer

Near-vertical or horizontal environments

Range: Up to 1500 meters

Depth: Up to 4000 meters

Data Rate: 9600 to 19200 bits/sec

Specifications


Click the picture to enlarge

UWM2200
Medium Range, Low Power

Directional Transducer

Near-vertical or horizontal environments

Range: Up to 1000 meters

Depth: Up to 2000 meters

Data Rate: 19200 to 38400 bits/sec

Specifications


Click the picture to enlarge

UWM2000H
Medium Range, Low Power

Omni-directional or directional Transducer

Long-range shallow to very shallow water environments with very harsh multi-path conditions

Range: Up to 1500 meters

Depth: Up to 2000 meters

Data Rate: 300 to 1200 bits/sec

Specifications


Click the picture to enlarge

UWM3000

Long Range, Omni-directional Transducer

Near-vertical or horizontal environments

Range: Up to 5000 meters

Depth: Up to 7000 meters

Data Rate: 2500 to 5000 bits/sec

Specifications


Click the picture to enlarge

UWM3000H

Long Range, Omni-directional Transducer

Long-range shallow to very shallow water environments with very harsh multi-path conditions

Range: Up to 6000 meters

Depth: Up to 7000 meters

Data Rate: 80 to 320 bits/sec

Specifications


Click the picture to enlarge

UWM4000

Long Range, Deep Water, Directional Transducer

Near-vertical or horizontal environments

Range: Up to 4000 meters

Depth: Up to 7000 meters

Data Rate: 4800 to 9600 bits/sec

Specifications


Click the picture to enlarge

UWM10000

Full Ocean Range and Depth, Directional or Omni-directional Transducer

Near-vertical or horizontal environments

Range: Up to 10000 meters

Depth: Up to 7000 meters

Data Rate: 2500 to 5000 bits/sec

Specifications



Models Tailored For Deepwater AUV Applications

Data Fusion Option:
All models of LinkQuest's acoustic modems can incorporate data fusion functions. The modems can interface to up to 7 underwater sensors or devices using the RS232 interface. These systems can also sample up to 16 analog inputs simultaneously and provide up to 1 Gbytes of permanent storage on a compact flash disk.

Integrated Into TrackLink USBL Positioning Systems:
Find more details at TrackLink USBL Acoustic Tracking Systems.

Integrated Into PinPoint LBL Positioning Systems:
Find more details at PinPoint LBL Acoustic Positioning Systems.

Higher Power Option:
Typically provides 6 dB higher transmit power.
